APPLIED LOAD TESTING


Evaluation and development often requires testing under loads that the product will be subjected to when in use.  This testing is typically performed using air or hydraulically actuated components such as cylinders and motors with specially adapted test fixtures.  Dragon's Head's hydraulic power pack affords flexibility and adaptability to allow unlimited options for applying loads.​​

Designed to accommodate straight forward component and tool pressure testing to function and characterize tools throughout their operating ranges, the systems can provide a few hundred psi to several thousand psi of pressure and are configured for both manual and remote control operation.

Testing Services

To ensure product performance, various testing capabilities coupled with customizable data acquisition are provided. Initial characterization and qualification testing is conducted at Dragon's Head and third party vendor assistance is coordinated when necessary. Field testing is then performed to validate initial results.

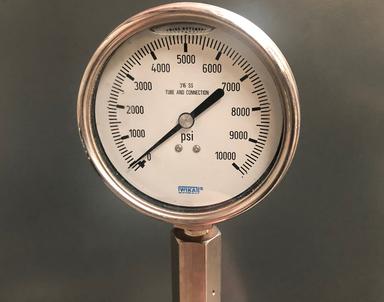

Pressure testing

nitrogen/helium


  • 21,750 psi max system pressure
  • 2 zone system
  • Typical test gas - Nitrogen
  • Integrated with in-house data acquisition
  • 4,750 psi continuous hydraulic pressure
  • Multiple circuits for independent and simultaneous operation
  • Equipped with sensors for integration with in-house data acquisition
Hydrostatic
  • 25,000 psi max system pressure
  • 3 zone system
  • Dead volume for precise control with small system volumes
  • Integrated with in-house data acquisition
